Overview

Tantalum is a distributed hardware development and deployment ecosystem. Tantalum IDE keeps day-to-day editing, Git source control, and firmware compilation local on your machine, connecting to the cloud only when a project needs secure authentication, board management, OTA delivery, workspace backup, live telemetry, or AI model access.

Together with Tantalum Web (cloud portal and admin) and Tantalum Mobile (Android field provisioning), Tantalum covers the full path from sketch to deployed, recoverable firmware on physical boards.

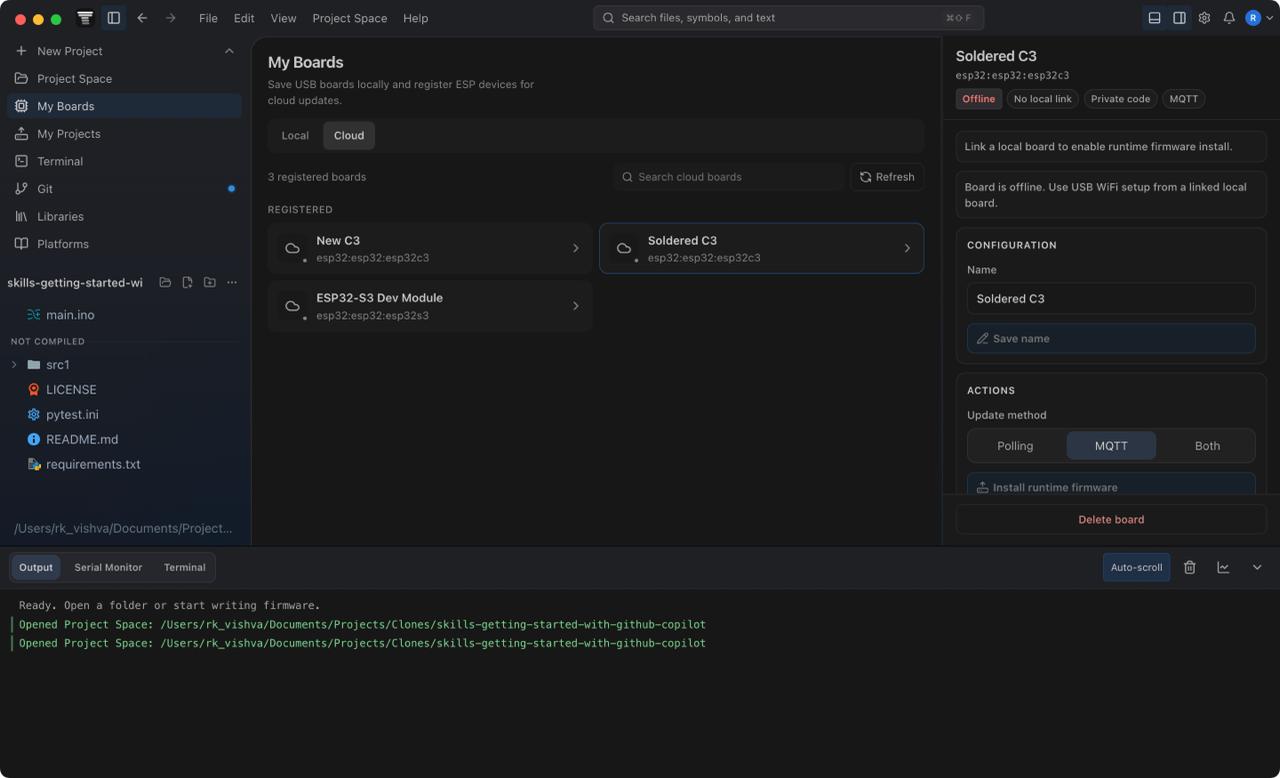

Tantalum IDE workspace and Monaco editor

The Problem

Arduino and ESP developers juggle separate tools for editing, serial monitoring, Git, OTA updates, WiFi provisioning, and source recovery after a flash. Cloud-backed IoT platforms often force WiFi credentials or source code through servers you do not control. Tantalum unifies the desktop workflow while keeping sensitive data local and offering optional self-hosted cloud infrastructure.

The Tantalum Ecosystem

Component	Role
Tantalum IDE	Electron desktop app: Monaco editor, Arduino CLI builds, board detection, built-in Git, OTA orchestration, runtime injection, View Code snapshot recovery, project cloud sync, and an agentic AI assistant.
Tantalum Web	Cloud portal for authentication, board administration, firmware history, agent settings, entitlements, and administrative operations.
Tantalum Mobile	Android companion for secure WiFi provisioning to boards in the field via Espressif BLE or SoftAP, linked to your cloud account without exposing WiFi secrets to the server.

Key Features (IDE)

▸Arduino sketch editing powered by Monaco Editor, tuned for C/C++.
▸Auto board detection combining Arduino CLI metadata, USB serial data, ESP chip probing, and optional AI-assisted FQBN suggestions.
▸Local board profiles with stable hardware fingerprints, ports, FQBNs, cloud links, OTA mode, and source visibility preferences.
▸Built-in Git source control on the active Project Space: status, diffs, stage/commit, fetch/pull/push, branches, history, init, and publish to GitHub or GitLab.
▸Tantalum runtime injection for cloud-connected builds: heartbeat, OTA polling, MQTT commands, TLS, provisioning, and telemetry via TantalumCloudRuntime.h.
▸OTA firmware delivery with polling, MQTT, or both; HMAC-signed commands and device-gateway telemetry.
▸View Code / snapshot recovery restores exact source from embedded firmware markers and cloud source snapshots (current and previous retention).
▸Project cloud sync via a shadow Git repository and Gitea remote without mutating the user's active Git history.
▸Runtime provisioning over USB serial, BLE, or SoftAP without storing WiFi passwords in the cloud.
▸Serial monitor and plotter with blocker detection before uploads or firmware readback.
▸Agentic AI assistant routed through the Tantalum agent runtime and Appwrite gateway with workspace-bound tools and restore points.

Tantalum Mobile

Tantalum Mobile is a Flutter Android app for field deployments where USB provisioning is impractical. After OAuth through Tantalum Web and Appwrite, users view registered boards, request a temporary provisioning window through board-admin, and send WiFi credentials directly to the board over a local BLE or SoftAP connection using Espressif's native provisioning libraries.

Privacy first: WiFi credentials are sent directly to the board over a local connection. They are never uploaded to Tantalum Cloud and are never stored by the mobile application.

Technical Architecture

Tantalum keeps privileged operations in the Electron main process, exposes a narrow IPC surface through preload, and lets the React renderer focus on UI.

React Renderer (Vite UI)

Monaco, dashboards, Git UI

▼

IPC Preload Bridge

▼

Electron Main Process

Arduino CLI, Git, serial, AI

▼

IoT Boards (Tantalum RT)

Common Workflows

▸Detect and save a board — Auto-detect fills FQBN and port details; save a profile keyed by hardware identity.
▸Enable cloud runtime — board-admin creates a cloud board and returns one-time secrets; the IDE injects them into runtime firmware and flashes over USB.
▸Provision WiFi — USB signed serial commands, or BLE/SoftAP from Tantalum Mobile using proof-of-possession.
▸Create an OTA release — Compile locally, embed a source marker, upload the artifact, and queue deployment.
▸Restore source with View Code — Read firmware from the board, match the embedded marker, and restore from cloud snapshots.
▸Commit through built-in Git — Stage, commit, and push from the active Project Space repository.
▸Sync the workspace — Cloud sync pushes a shadow repo to Gitea and applies remote changes back into the workspace.

Security Model

▸Board credentials: Cloud stores token hashes and encrypted command secrets; raw API tokens and command secrets are returned only at creation or rotation.
▸WiFi credentials: Never uploaded to Appwrite; provisioning stays on USB, BLE, or SoftAP paths.
▸AI provider keys: Managed and custom keys use KEK-encrypted envelopes; the desktop can route through the agent gateway without holding raw developer keys.
▸Source snapshots: Private by default; optional public code visibility for authenticated ecosystem users.
▸Git provider tokens: Stored in the desktop secret store; publishing uses temporary auth headers, not tokens in remote URLs.
▸MQTT commands: HMAC-signed with action, deployment ID, nonce, and timestamp; boards reject stale or invalid commands.

Self-Hosting

The default self-hosted stack runs Appwrite (auth, database, storage, functions, hosting), Mosquitto for MQTT board commands, and Gitea for workspace cloud sync. The Tantalum-IDE repository includes Azure VM runbooks, appwrite push workflows for tables/buckets/functions, and smoke scripts for auth, OTA, and cloud sync.

For step-by-step deployment, see the self-hosting guide and the Azure runbook in the Tantalum-IDE repository.

Stack

Layer	Technology
Desktop shell	Electron
IDE UI	React, TypeScript, Vite, Monaco Editor
Toolchain	Arduino CLI, esptool / avrdude
Cloud backend	Appwrite (DB, Storage, Functions)
Workspace sync	Gitea (shadow Git repositories)
Device commands	Mosquitto MQTT (TLS)
Mobile	Flutter (Android 8.0+)
AI	Tantalum agent runtime, OpenCode SDK, Appwrite agent-gateway
Provisioning	Espressif esp-idf-provisioning-android (Mobile)

Getting Started (IDE)

git clone https://github.com/rkvishwa/Tantalum-IDE.git
cd Tantalum-IDE
npm install
npm run dev

Requires Node.js 18+, npm 9+, Git, and Arduino CLI on PATH (or bundled under resources/). Full cloud feature testing needs an Appwrite project configured per the repository README.

Status

Tantalum is open source under the MIT License. Tantalum IDE targets macOS, Windows, and Linux; Tantalum Mobile targets Android 8.0 (API 26) and above. Primary development lives on GitHub at commit a7f937a on main (Tantalum-IDE).

License

This project is licensed under the MIT License.
